What is Ferno Arachnipod?

The Ferno Arachnipod is an artificial high directional system that provides many ways to safely manage all types of edges and voids. Its modular design makes the Arachnipod the world’s most versatile modular total edge management system (TEMS).

What is unique about the Arachnipod system is the way you can connect its three styles of legs and feet into different configurations to best suit the environment and job at hand

The Arachnipod system can be purchased in a choice of six pre-assembled core kits , You can find them in the reference guide below.

Arachnipod
Arachnipod
Top Five Favourite Features
1

Fast Set Up The Arachnipod’s telescoping legs are pre-assembled as a singular unit ready for immediate use. No pre-assembly or joining components together. Arachnipod’s three styles of patented leg heads are designed with cut- out hinge profiles. Two or more leg heads are slotted together and held in place with a pin. All systems can be configured in under two minutes enabling operators to progress with rigging and stabilisation tasks sooner.

2
Future Proofed Arachnipod’s modularity and comprehensive range of kits and components means the system can be expanded to suit changing needs and budget. Customers can start with a basic Arachnipod unit and as their requirements or budgets grow, they can expand their system with additional kits or individual accessories.
3
Ultra Versatile Arachnipod! Arachnipod tripods, quadpods and bridge systems When is a tripod not a tripod? When it’s an can be completely dismantled allowing the individual legs to be combined with other components to build numerous edge management configurations. Eg. If an A-Frame is required, combine two legs from the tripod together with a rigging plate which provides the new system with additional stabilisation and rigging points. With Arachnipod, one single device can be reconfigured to manage many situations.
4
User Friendly by the Australian Design Council for its innovative design which includes many user-friendly features. The Arachnipod was awarded a Design Mark Fixing methods and hardware such as head and leg pins can be installed or removed with one hand. Fastening hardware is attached to legs and accessories ready for immediate deployment and to eliminate loss of cru- cial parts in the field. Components are sized and shaped for easy manip- ulation with gloved hands. Accessories like the Step enables convenient and efficient work flow with safe access to the system’s head.
5
Cost Effective and usefulness in multiple working environments makes it a cost The Arachnipod’s modularity, efficient set up effective tool. Engineered for strength, the Arachnipod is designed and manufactured in Australia from quality materials and built to last. Sturdy, customised transport bags are supplied with each Arachnipod unit to further protect this versatile asset.
Arachnipod
Arachnipod

Tech Spech

STANDARD TRIPOD CODE: APOD-STD

IN THE BOX

  • 2 x Standard legs with eye bolts
  • 1 x Pulley leg
  • 1 x Foot tether with rope grab
  • 1 x Arachnipod standard bag

This kit will make:

  • Tripod
  • A-Frame (Rigging Plate required*)
  • Sideways A-Frame (Rigging Plate
    • required*)
  • Handrail Recovery Monopole
ADVANTAGE TRIPOD: CODE: APOD-ADV

IN THE BOX

  • 1 x Standard leg with eye bolt
  • 1 x Pulley leg
  • 1 x Lazy leg with eye bolt
  • 1 x Lazy Leg Adaptor (accessory)
  • 1 x Foot tether with rope grab
  • 1 x Arachnipod standard bag (not shown)

This kit will make:

  • Tripod
  • A-Frame (Rigging Plate required*)
  • Sideways A-Frame (Rigging Plate
    • required*)
  • A-Frame with Lazy Leg (Reverse Head and Quad Plate required*)
  • Handrail Recovery Monopole
QUADPOD: CODE: APOD-QUAD

IN THE BOX

  • 2 x Standard legs
  • 2 x Pulley legs
  • 1 x Quad Plate (accessory)
  • 1 x Foot tether and rope grab
  • 1 x Arachnipod standard bag (not shown)
  • 1 x Single leg bag (not shown)

This kit will make:

  • Tripod
  • Quadpod (Quad Plate required, supplied)
  • A-Frame (Rigging Plate required*)
  • Sideways A-Frame (Rigging Plate required*)
  • Handrail Recovery Monopole
STANDARD BRIDGE: CODE: APOD-S2B / APOD-S3B / APOD-S4B

IN THE BOX

  • 3 x Standard legs with eye bolts
  • 1 x Pulley leg
  • 1 x 2m, 3m or 4m bridge
  • 1 x Quad Plate (accessory)
  • 2 x Foot tether and rope grab
  • 1 x Arachnipod standard bag
  • 1 x Bridge bag

This kit will make:

  • Tripod
  • Quadpod (Quad Plate required, supplied)
  • A-Frame (Rigging Plate required, optional extra)
  • Sideways A-Frame (Rigging Plate required, optional extra)
  • Handrail Recovery Monopole
  • Bridge System
ADVANTAGE PLUS KIT: CODE: APOD-ADV+

IN THE BOX

  • 1 Standard leg with eye bolt
  • 1 Pulley leg
  • 1 Lazy leg with eye bolt
  • 1 x Lazy Leg Adaptor
  • 1 x Foot tether and rope grab
  • 1 x Arachnipod standard bag
  • 1 x Advantage Accessory Kit

This kit will make:

  • Tripod
  • A-Frame (Rigging Plate required, supplied)
  • Sideways A-Frame (Rigging Plate required, supplied)
  • A-Frame with Lazy Leg (Quad Plate and Reverse Head required, supplied)
  • Gin / Monopole (Lazy Leg and Gin Head required, supplied)
  • Handrail Recovery Monopole
TOTAL EDGE MANAGEMENT SYSTEM: CODE: APOD-TEMS

IN THE BOX

  • 2 x Standard leg with eye bolt
  • 1 x Pulley leg
  • 1 x Lazy Leg with eye bolt
  • 1 x 2 m, 3 m or 4 m Bridge
  • 1 Lazy Leg Adaptor
  • 2 x Foot tether and rope grab
  • 1 x Arachnipod standard bag
  • 1 x Bridge bag to suit bridge length
  • 1 x Full Accessory Kit

All parts supplied in this kit will make:

  • Tripod
  • A-Frame
  • Sideways A-Frame
  • A-Frame with Lazy Leg
  • Quadpod
  • Gin / Monopole
  • Handrail Recovery Monopole
  • Bridge System
Technical specifications
Working Load Limit Tripods and Quadpods: 400 kg at max. height
External Anchor Bridge System (at max. height and mid beam)
Point 2m: 280kg / 3m: 230kg / 4m: 190kg
MBS Tripods and Quadpods: 40kN
Bridge System (at max. height and mid beam)
2m: 28kN / 3m: 23kN / 4m: 19kN
Tech Spech

How to

Component and Accessories

Watch Video

TRIPOD CONFIGURATION

Watch Video

QUADPOD CONFIGURATION

Watch Video

BRIDGE ASSEMBLY

Watch Video

Download Area

Brochure

Brochure EN

Manuals

Manual EN

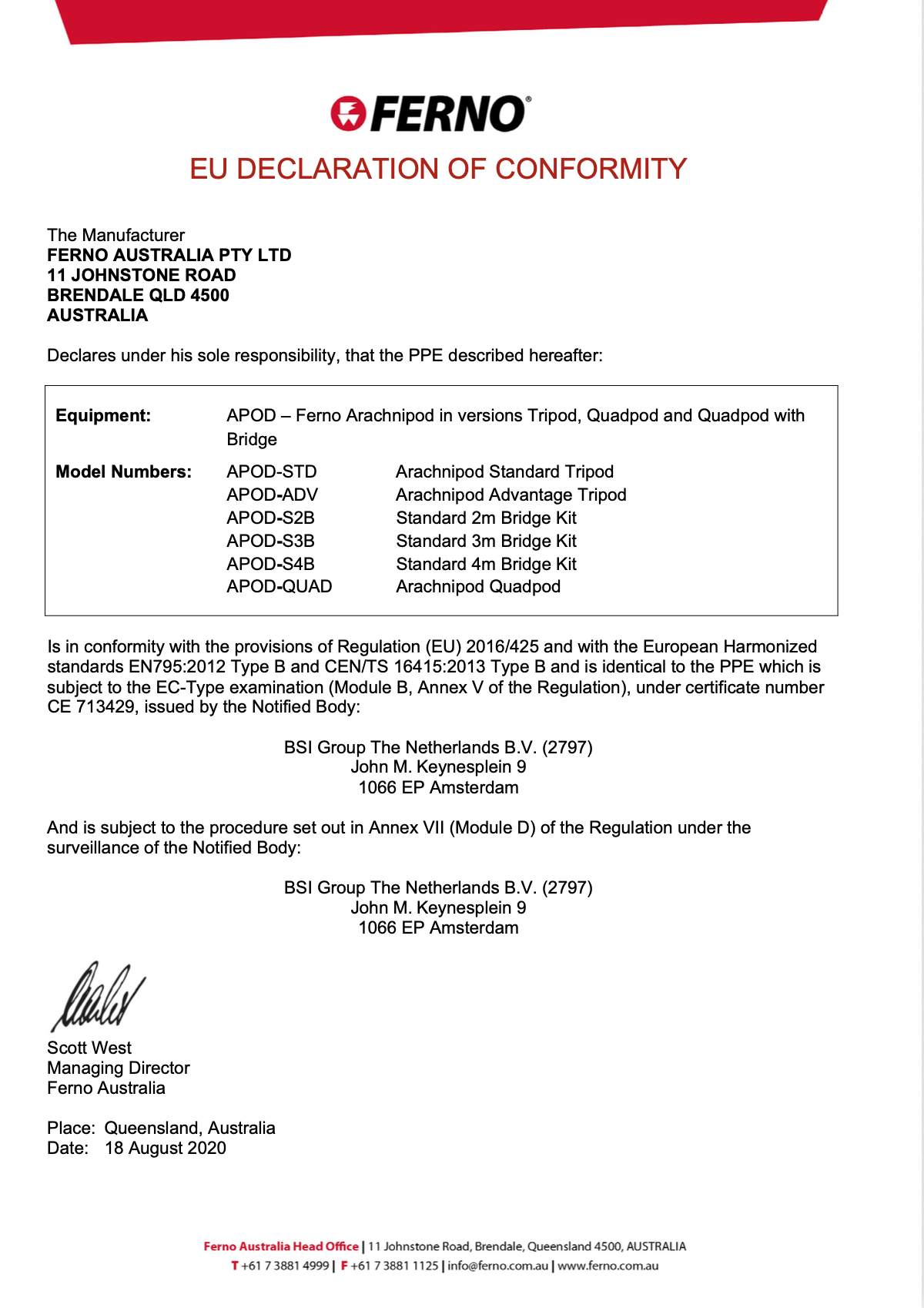

Declaration of conformity
